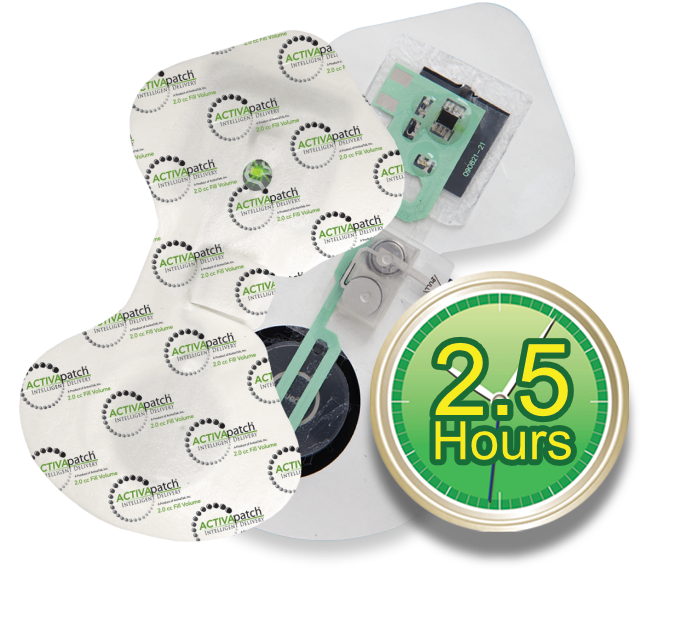

Self-powered, extended-wear iontophoresis patch.
Fully Self Contained
No need for separate dose controllers or external power sources. This compact, all-in-one solution simplifies the iontophoresis treatment process, making it more accessible and user-friendly.
Requires No Saline
Our advanced hydrogel dispersive technology eliminates the need for saline solution, simplifying application and preventing over-hydration or operator error by ensuring the correct placement of medication in the iontophoresis patch.
Auto Shutoff with SHUNT®
This advanced system automatically shuts off the patch after the 80 mA-minute treatment is complete, guaranteeing accurate dosage and minimizing the risk of over-treatment.
| Features | IntelliDose™ 2.5 | IontoGo™ 4.0 | IontoGo™ 12.0 |
|---|---|---|---|
| Teatment Time | 2.5 hours | 4 hours | 12 hours |
| Dosage | 40 or 80 mA*min | 80 mA*min | 80 mA*min |
| Drug Reservoir Fill Volume | 2.0cc | 2.0cc | 2.0cc |
| Hydrogel Dispursive Technology | ✓ | ✓ | ✓ |
| Pull-Tab Activation | ✓ | ✓ | ✓ |
| Patented “shut-off” technology | ✓ | ✓ | ✓ |
| Intelligent biofeedback microprocessor | ✓ | ||
| SmartPower™ LED | ✓ |
IntelliDose™ 2.5 Specifications
Active Area
11.4 cm2
Dosage
40 or 80 mA*min
Skin Adhesive
Hypoallergenic
Maximum Buffer Capacity
Ag/AgCL Stabilizer
Fill Volume
2.0cc
Smart Power
6V with intelligent microprocessor
Packaging
6 ActivaPatch Kits, Alcohol Wipes, Patient Information Cards
How to Apply the IntelliDose™ 2.5

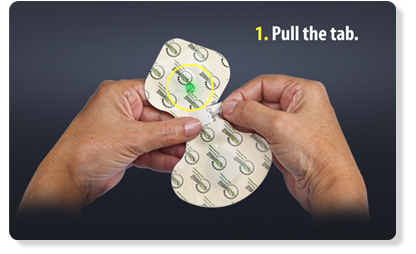

Pull the Tab
Gently apply your thumb to the battery case and remove the pull tab. This activates the patch. You'll notice the LED flash sequence, one flash every 4 seconds, will begin.

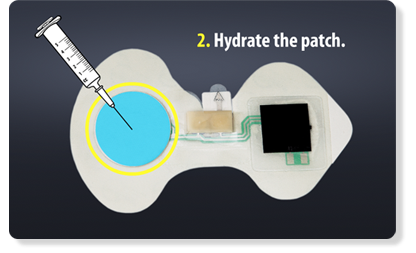

Hydrate the Patch
ActivaPatch® IntelliDose™ 2.5 has our state-of-the-art Hydrogel dispersive electrode therefor does not require saline fill to activate. Simply fill the resevoir with up to 2.0cc of the intended drug.

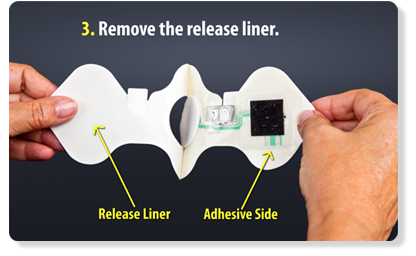

Remove the Release Liner
Using the peel tab at the top of the patch, remove the release liner from the adhesive side of the patch.

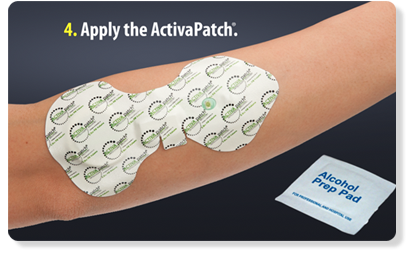

Apply the ActivaPatch®
Using an alcohol wipe, thoroughly clean the skin and place the patch on the desired treatment site. Note: The ActivaPatch® readily contours to multiple anatomical treatment sites.
Sequence Pattern
Once activated, the ActivaPatch® IntelliDose™ 2.5 incorporates our Smart Power™ flashing LED which provides accurate feedback for clinician and patient. A simple light sequence keeps the user informed of where they are in the treatment process.

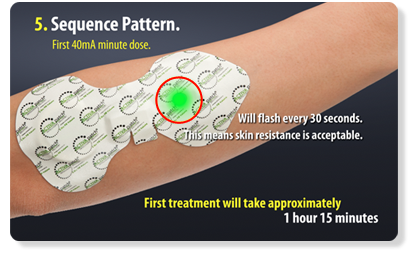

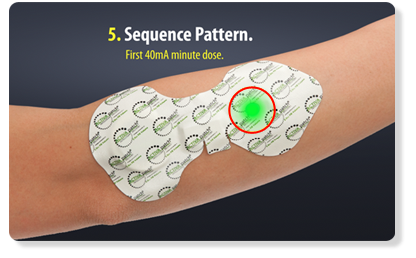

First 40mA minute dose
The ActivaPatch® LED will flash once every 30 seconds for the first 40mA minute dose. This means skin resistance is within acceptable impedance and normal current flow has begun. This first treatment will take approximately 1 hour and 15 minutes.

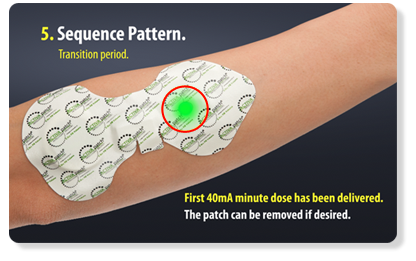

Transition Period
At the end of the first 1 hour 15 minute treatment, a transition period will occur. The LED will flash in a short/long/short sequence for a length of 3 minutes. This indicates that the first 40mA minute dose has been delivered and the patch can be removed if desired. If delivering a second 40mA minute dose, simply leave the patch in place.

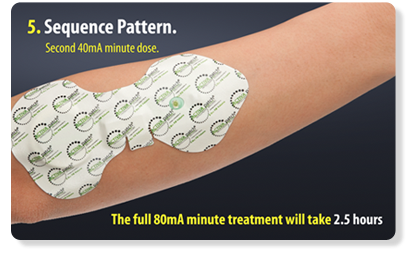

Second 40mA minute dose
At the end of the 3-minute transition period, the LED will begin to flash twice every 30 seconds. This indicates that the second treatment has started. This will take an additional 1 hour and 15 minutes. The full 80mA minute treatment will take approximately 2.5 hours.

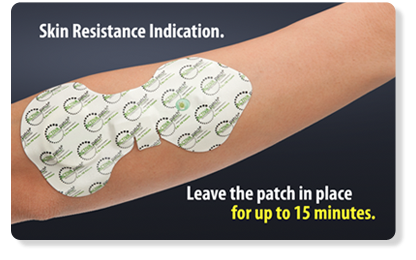

Skin Resistance Indication
If ActivaPatch® IntelliDose™ 2.5 detects skin resistance to be too high, the LED will flash 3 times every 10 seconds, alerting the clinician or patient. Leave the patch in place and wait up to 15 minutes. The IntelliDose™ 2.5 technology will continue to measure skin resistance. If the LED begins to flash once every 30 seconds, then skin resistance has lowered to an acceptable range and treatment has begun.
If this does not occur within 15 minutes

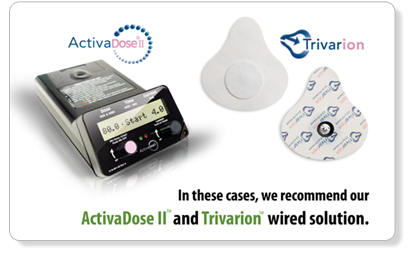

Skin resistance is too high to be treated with ActivaPatch®. In these cases, it is recommended to use the ActivaDose® II Iontophoresis Delivery Unit and a quality wired Iontophoresis electrode such as the Trivarion® to treat the patient.
PATENTED SHUNT™ (shut-off) TECHNOLOGY
The ActivaPatch® LED will automatically turn off at the end of the 80mA minute treatment (approximately 2.5 hours). The patch can then be removed from the skin.
